Mint Tin Amp

Back | Back home

I had this nice mint tin and I though that it would be cool to build in a mini amp for my bass guitar. I search the net for some nice and simple schematics and builded the box on a rainy sunday afternoon. See the results below...

Mini amp schematics

I found this schematics at

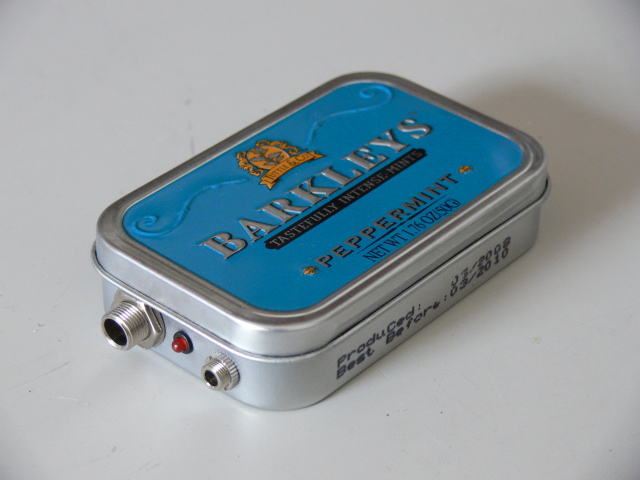

Mint tin amp closed

Nice little mint tin amp to hook up my bass to a headphone

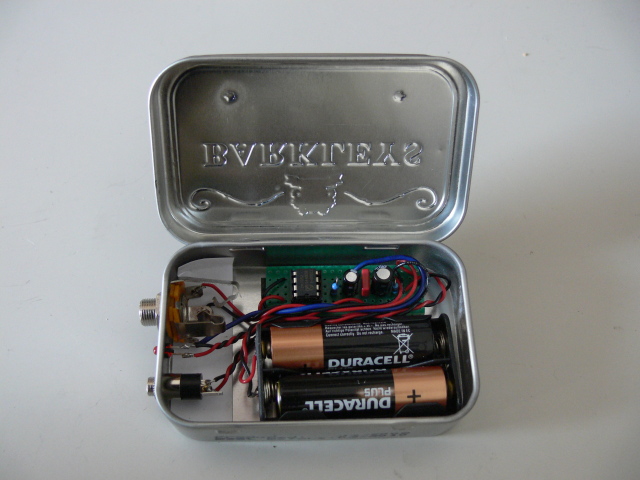

Mint tin amp opened

Two AA batteries give the power for a loud output on the headphone

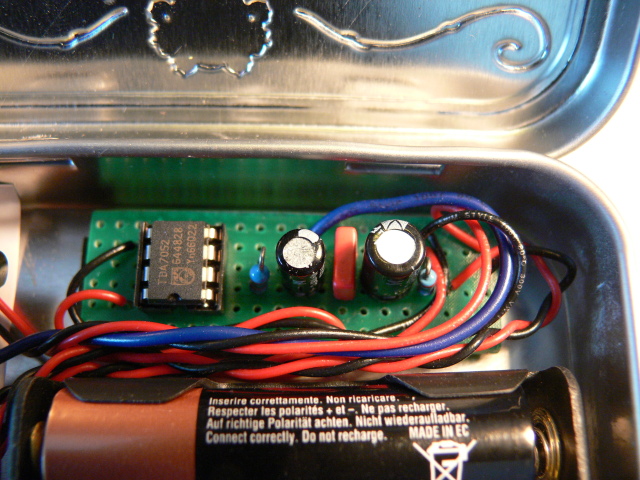

Mint tin amp close up

Close up of the board. The design is real easy.
